It’s easy to understand why many crane fleet owners love the simplicity of truck-mounted cranes. At Grove, we get it. Which is why Grove has a proven range of truck-mounted lifters in its range.

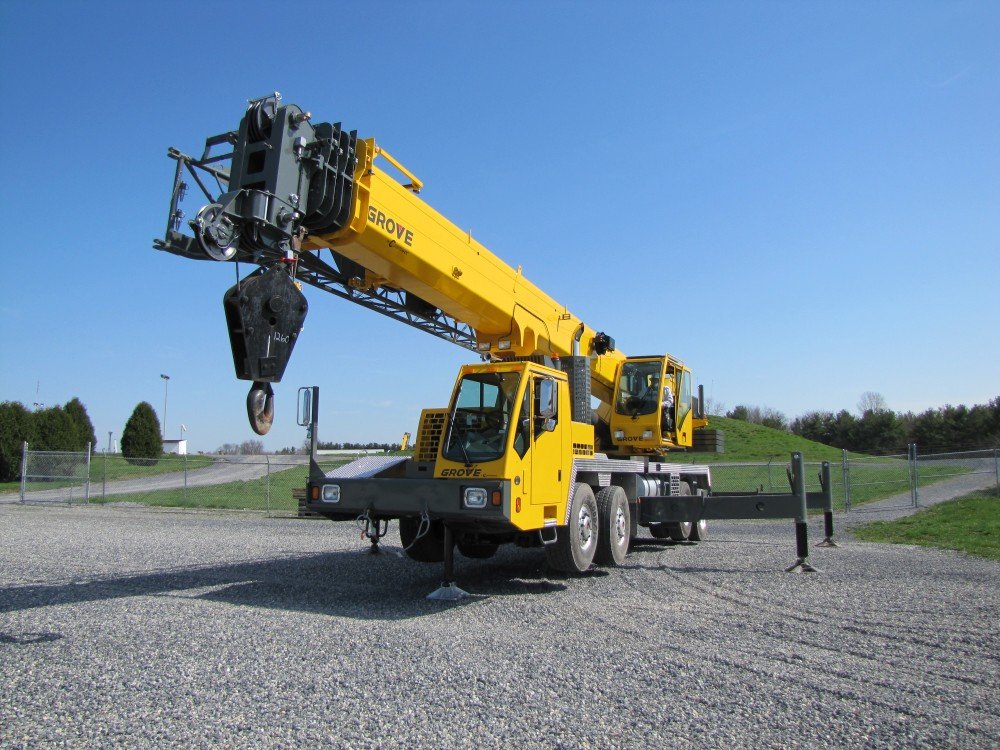

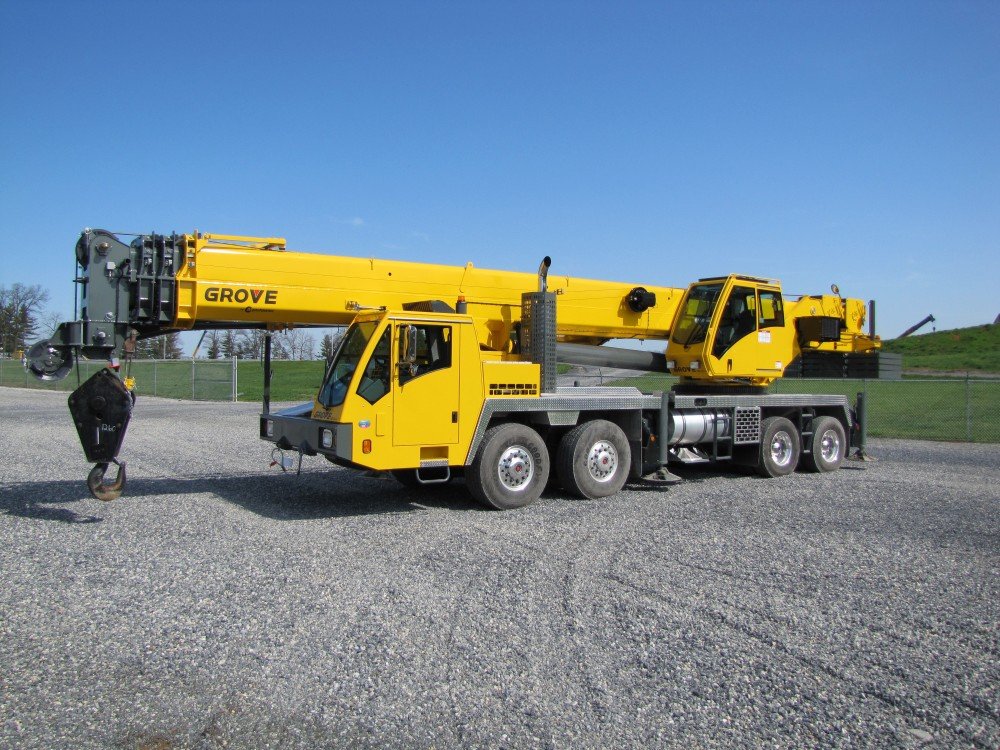

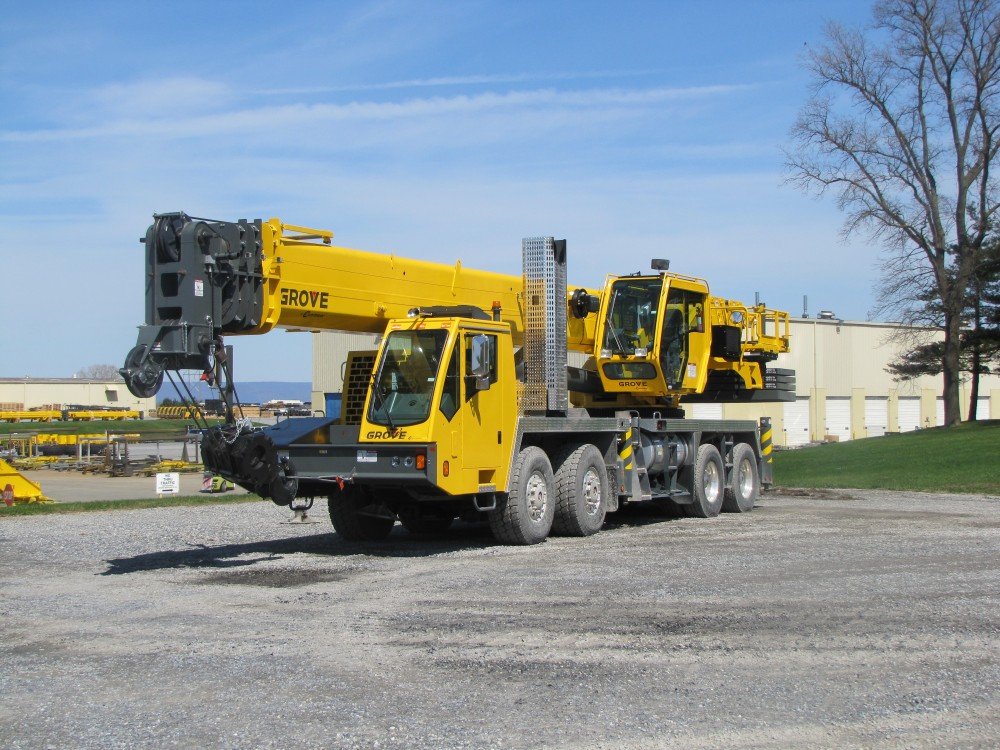

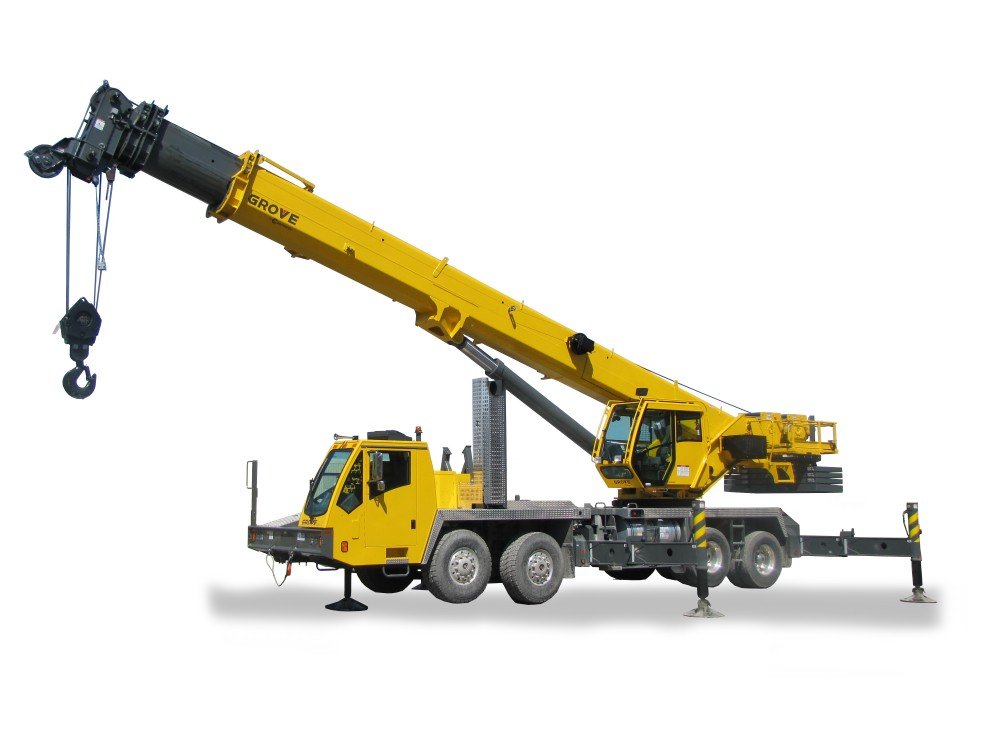

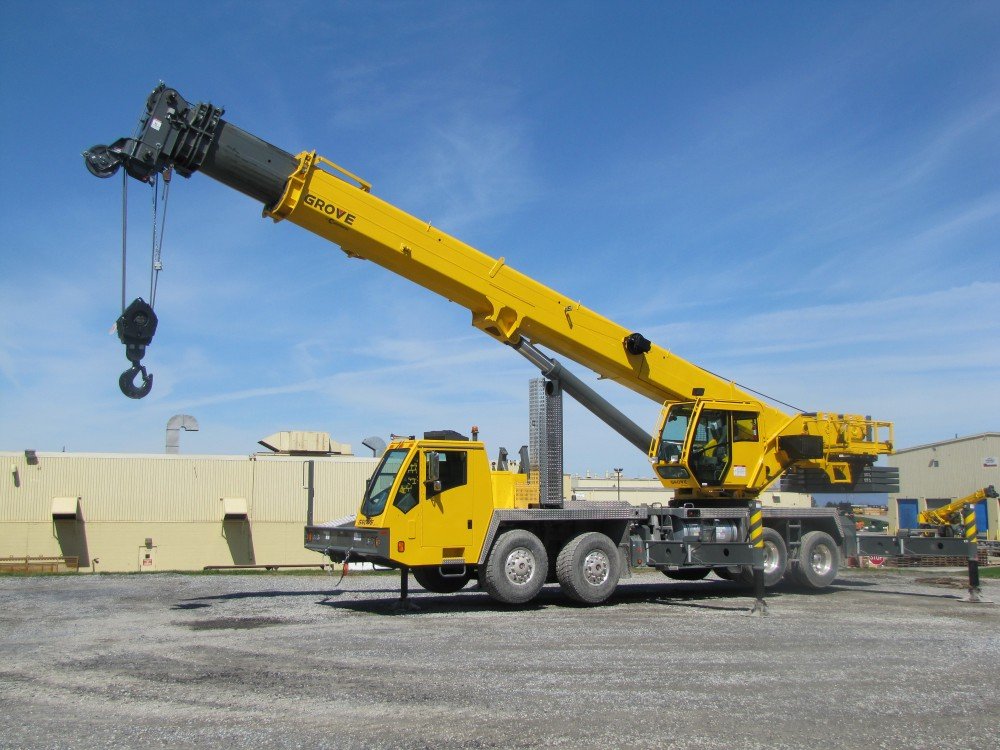

Introducing the mid-range model: the 70-tonne capacity TMS800E. Its distinctive 39m MEGAFORM^™four-section full power boom is designed for maximum vertical and lateral strength.

And ride quality is comfortable, too. Standard front and rear air ride suspension provides a comfortable ride at maximum speed of up to 104 km/h… but we always recommend adhering to legal speed limits at all times.

This crane, like all crane in the Grove range, definitely has been designed with the operator’s comfort and safety in mind. One man design, aluminium fabricated with acoustical lining and tinted safety glass throughout. Deluxe fabric covered seat with air adjustment. Complete driving controls and engine instrumentation including tilt telescope steering wheel, tachometer, speedometer, voltmeter, water temp., oil pressure, fuel level, air pressure gauge with A/V warning and engine high temp./low oil pressure A/V warning. Other standard items include hot water heater/defroster, electric windshield wash/wipe, fire extinguisher, seat belt, door lock, air horn, and air conditioning.

Then there’s the power plant: the crane is powered by the Cummins QSM 11 six cylinder, turbo charged and after cooled diesel engine, which delivers the horsepower and torque needed to negotiate tough job sites and achieve highway travel speeds.

Other features include:

• Standard “Graphics Display” load moment and anti-two block system with audio-visual warning and control lever lockout
• Folding lattice swingaway extension offsettable at 0°, 20° or 40°. Two 6.1m lattice extensions used with the swingaway extension to increase the length to 23.2m or 29.3m, enabling tip height to reach up to 70.1m
• 379L fuel tank capacity
